Description

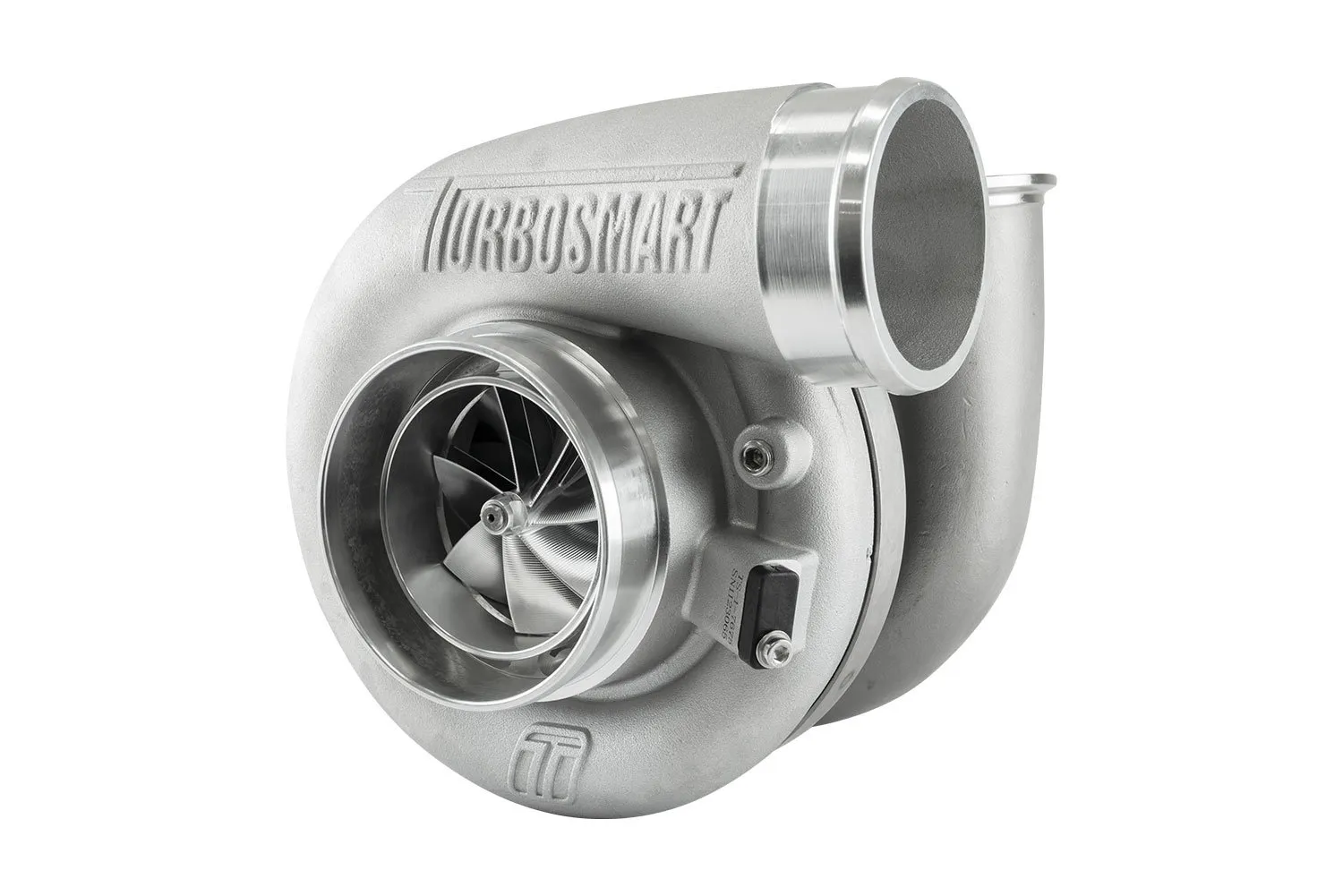

Turbocharger – TS-1 – 76 mm Inlet – V-Band Outlet – External Wastegate – Aluminum – Natural – Universal – Each
Search Suggestions
Search Suggestions
Sale
TURBOSMART USA TS-1 Turbocharger 7675 V-Band 0.96AR Ext WG TS-1-7675C-VB096E
SKU: TBSTS-1-7675C-VB096E
Original price was: $3,279.00.$2,980.79Current price is: $2,980.79.
In stock
1 in stock
Add to wishlistProduct information
| Weight | 24.363 lbs |
|---|---|
| Dimensions | 12 × 12 × 11 in |
| Product Line | TS-1 |
| Quantity | Each |
| Variant | Yes |
| Variant Group | Turbochargers4 |
| Variant Column | Turbine Housing Inlet Style |
| Compressor Inlet Diameter | 4 in |
| Turbine Housing Inlet Style | V-Band |
| Turbine Housing Outlet Style | V-Band |
| Turbine Housing Outlet Diameter | 3.5 in |
| Turbine Ar | 0.96 |
| Internal Wastegate / External Wastegate | External Wastegate |
| Rotation | Standard |
| Inducer Diameter (Mm) | 76 mm |
| Exducer Diameter (Mm) | 70 mm |
| Compressor Alloy | T14 |
| Compressor Wheel Material | Inconel |
| Single Bearing / Dual Bearing | Dual |
| Bearing Style | Ceramic |
| Cooling Style | Oil Cooled |
| Compressor Housing Material | Aluminum |
| Compressor Housing Color | Natural |
| Compressor Housing Finish | Natural |
| Turbine Housing Alloy | Cast |
| Turbine Housing Material | Stainless |
| Turbine Housing Color | Natural |
| Turbine Housing Finish | Natural |
| Clamps Included | Yes |
| Weld Flanges Included | Yes |
| Gaskets Included | Yes |
| Turbine Housing Inlet Diameter | 3 in |
| Brand | |
| Condition | |
| Type | |
| Manufacturer Part Number | TS-1-7675C-VB096E |
Description
Turbocharger - TS-1 - 76 mm Inlet - V-Band Outlet - External Wastegate - Aluminum - Natural - Universal - Each
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
