Description

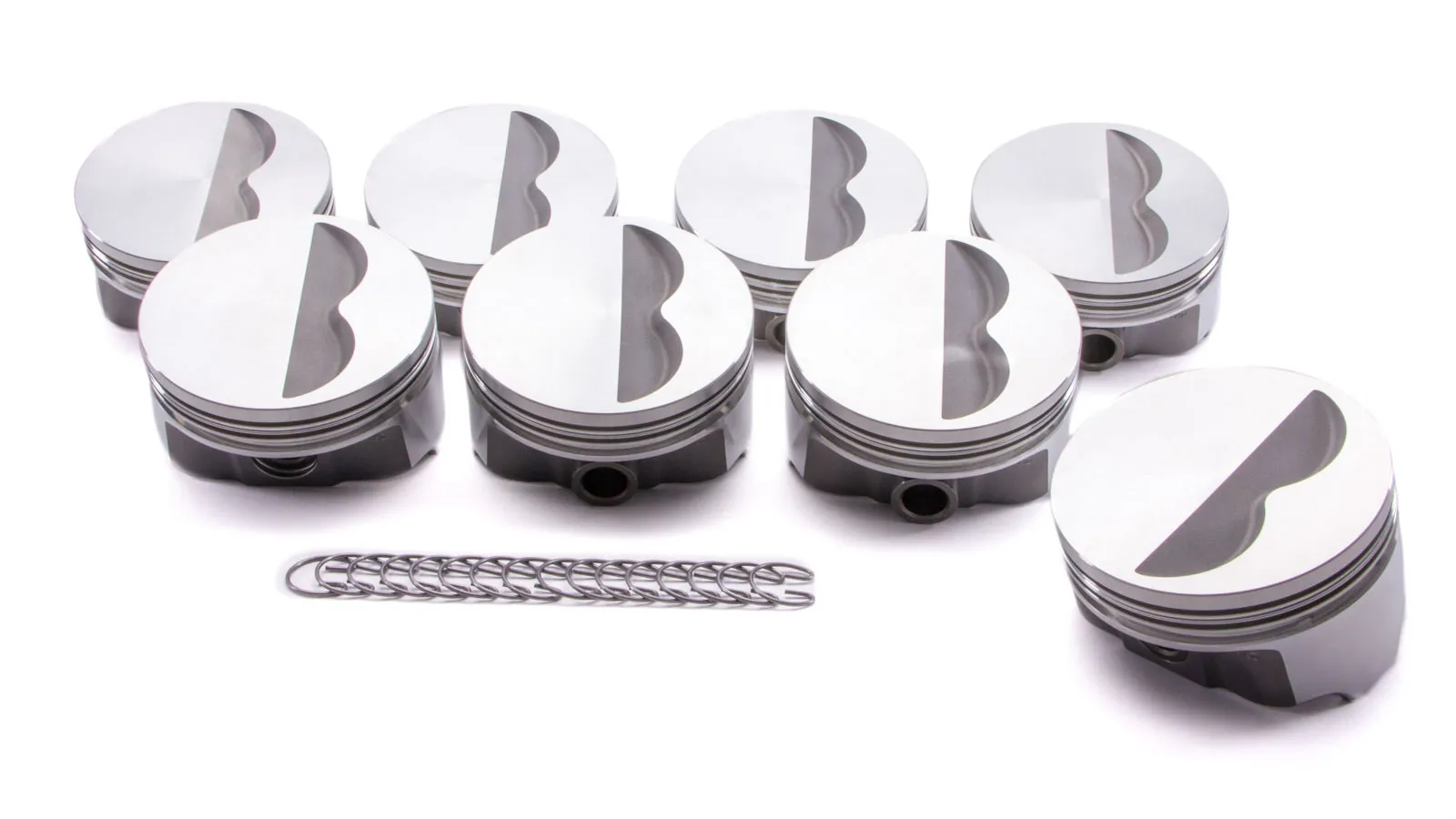

Piston – FHR Forged – Forged – 4.155 in Bore – 5/64 x 5/64 x 3/16 in Ring Grooves – Minus 3.70 cc – Small Block Chevy – Set of 8
Search Suggestions
Search Suggestions
Sale
ICON PISTONS SBC FHR F/T Piston Set 4.155 Bore -3.7cc IC9941.030
SKU: ICNIC9941.030
Original price was: $666.00.$605.20Current price is: $605.20.
Out of stock
Out of stock
Add to wishlistProduct information
| Weight | 13.73 lbs |
|---|---|
| Dimensions | 19 × 9.5 × 5 in |
| Product Line | FHR |
| Bore | 4.155 in |
| Style | Flat Top |
| Material Style | Forged |
| Compression Height | 1.433 in |
| Volume | Minus 3.70 cc |
| Wrist Pin Included | Yes |
| Wrist Pin Style | Floating/Press |
| Wrist Pin Diameter | 0.927 in |
| Wrist Pin Length | 2.750 in |
| Top Ring Groove Thickness | 5/64 in |
| 2Nd Ring Groove Thickness | 5/64 in |
| Oil Ring Groove Thickness | 3/16 in |
| Alloy | 4032 |
| Material | Aluminum |
| Finish | Natural |
| Quantity | Set of 8 |
| Valve Angle | 23 Degree |
| Piston Weight | 571 g |
| UPC Code | 800745144638 |
| Brand | |
| Condition | |
| Type | |
| Manufacturer Part Number | IC9941.030 |
Description
Piston - FHR Forged - Forged - 4.155 in Bore - 5/64 x 5/64 x 3/16 in Ring Grooves - Minus 3.70 cc - Small Block Chevy - Set of 8
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
