Description
Cylinder Head – Assembled – 2.020 / 1.600 in Valve – 180 cc Intake – 64 cc Chamber – 1.460 in Springs – Straight Plug – Aluminum – Small Block Chevy – Each
Search Suggestions
Search Suggestions
Sale

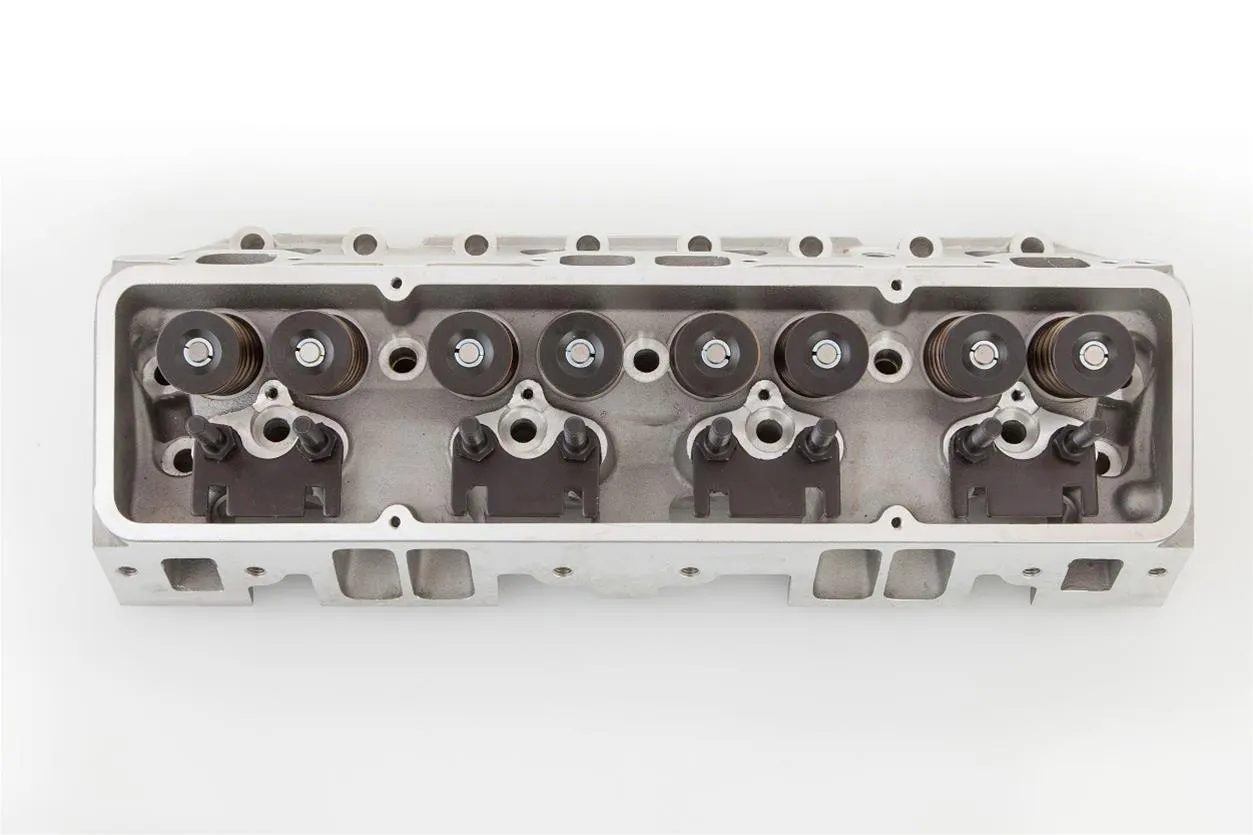

FLOTEK SBC 180cc Alum Cyl Head 64cc 2.02/1.60 S/P Assm 102-505FT
SKU: FTC102-505FT
Original price was: $550.85.$479.00Current price is: $479.00.
In stock
25 in stock
Add to wishlistProduct information
| Weight | 27.865 lbs |
|---|---|
| Dimensions | 22.8 × 8.55 × 7.25 in |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Each |
| Assembled/Bare | Assembled |
| Chamber Volume | 64 cc |
| Plug Angle | Straight |
| Intake Runner Volume | 180 cc |
| Exhaust Runner Volume | 62 cc |
| Intake Port Shape | Rectangle |
| Intake Port Location | Stock |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Stock |
| Exhaust Port Bolt Pattern | Stock |
| Intake Valve Size | 2.020 in |
| Intake Valve Included | Yes |
| Exhaust Valve Size | 1.600 in |
| Exhaust Valve Included | Yes |
| Valve Spring Included | Yes |
| Valve Seal Included | Yes |
| Rocker Studs Included | Yes |
| Pushrod Guide Plate Included | Yes |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Perimeter Mount Valve Cover | Yes |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Powdered Metal |
| Exhaust Valve Seat Material | Powdered Metal |
| Valve Seat Finish | Machined |
| Combustion Chamber Finish | As Cast |
| Intake Runner Finish | As Cast |
| Exhaust Runner Finish | As Cast |
| Intake Valve Angle | 23 Degree |
| Exhaust Valve Angle | 23 Degree |
| Accessory Bolt Holes | Drilled and Tapped |
| Intended Camshaft Style | Mechanical Flat Tappet, Hydraulic Flat Tappet |
| Maximum Lift | 0.550 in |
| Valve Spring Diameter | 1.460 in |
| Valve Spring Number | Single |
| Valve Spring Damper | Yes |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Chromoly |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly |
| Valve Lock Angle | 7 Degree |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Rocker Stud Size | 3/8-24 in |
| Guide Plate Pushrod Size | 5/16 in |
| Intake Valve Material | Stainless |
| Exhaust Valve Material | Stainless |
| UPC Code | 850134007457 |
| Brand | |
| Condition | |
| Type | |
| Manufacturer Part Number | 102-505FT |
Description
Cylinder Head - Assembled - 2.020 / 1.600 in Valve - 180 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Each
