Description
Connecting Rod – H Beam – 6.200 in Long – Bushed – 7/16 in Cap Screws – ARPL19 Bolt – Forged – Steel – Small Block Chevy / Ford – Set of 8
Search Suggestions
Sale

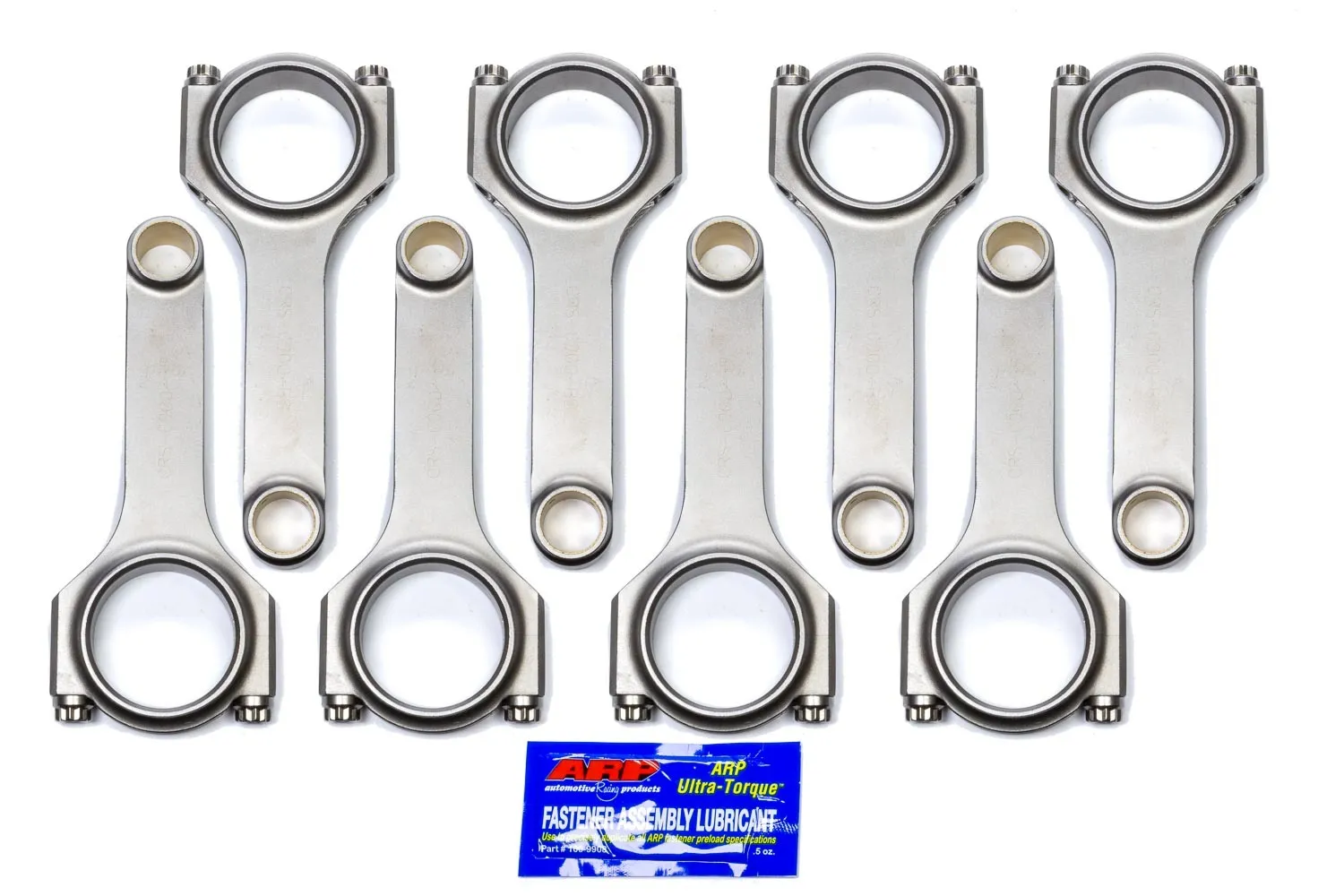

EAGLE SBC 4340 Forged H-Beam Rods 6.200 w/L19 Bolts CRS6200B3DL19
SKU: EAGCRS6200B3DL19
Original price was: $831.23.$755.66Current price is: $755.66.
In stock
1 in stock
Add to wishlistProduct information
| Weight | 12.505 lbs |
|---|---|
| Dimensions | 10.95 × 9.9 × 4.2 in |
| Beam Style | H Beam |
| Rod Length | 6.200 in |
| Bushed / Press Fit Wrist Pin | Bushed |
| Small End Bore Diameter | 0.927 in |
| Small End Width | 1.060 in |
| Rod Journal Diameter | 2.100 in |
| Large End Bore Diameter | 2.225 in |
| Large End Width | 0.940 in |
| Fastener Style | Cap Screw |
| Fastener Manufacturer | ARP |
| Fastener Product Line | ARPL19 |
| Fastener Diameter | 7/16 in |
| Fastener Head Style | 12 Point |
| Fastener Alloy | ARPL19 |
| Fastener Material | Chromoly |
| Weight Matched | Yes |
| Approximate Weight | 660g |
| Material Processing | Shot-Peened |
| Forged | Yes |
| Alloy | 4340.0 |
| Material | Steel |
| Color | Natural |
| Finish | Natural |
| Quantity | Set of 8 |
| Variant | Yes |
| Variant Group | Connecting Rods10 |
| Variant Column | Rod Length,Quantity |
| UPC Code | 793348044002 |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | CRS6200B3DL19 |
Description
Connecting Rod - H Beam - 6.200 in Long - Bushed - 7/16 in Cap Screws - ARPL19 Bolt - Forged - Steel - Small Block Chevy / Ford - Set of 8
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
