Description
Crankshaft – 4.000 in Stroke – Internal Balance – 58X Reluctor – Billet Steel – 1-Piece Seal – GM LS-Series – Each
Search Suggestions
Search Suggestions
Sale

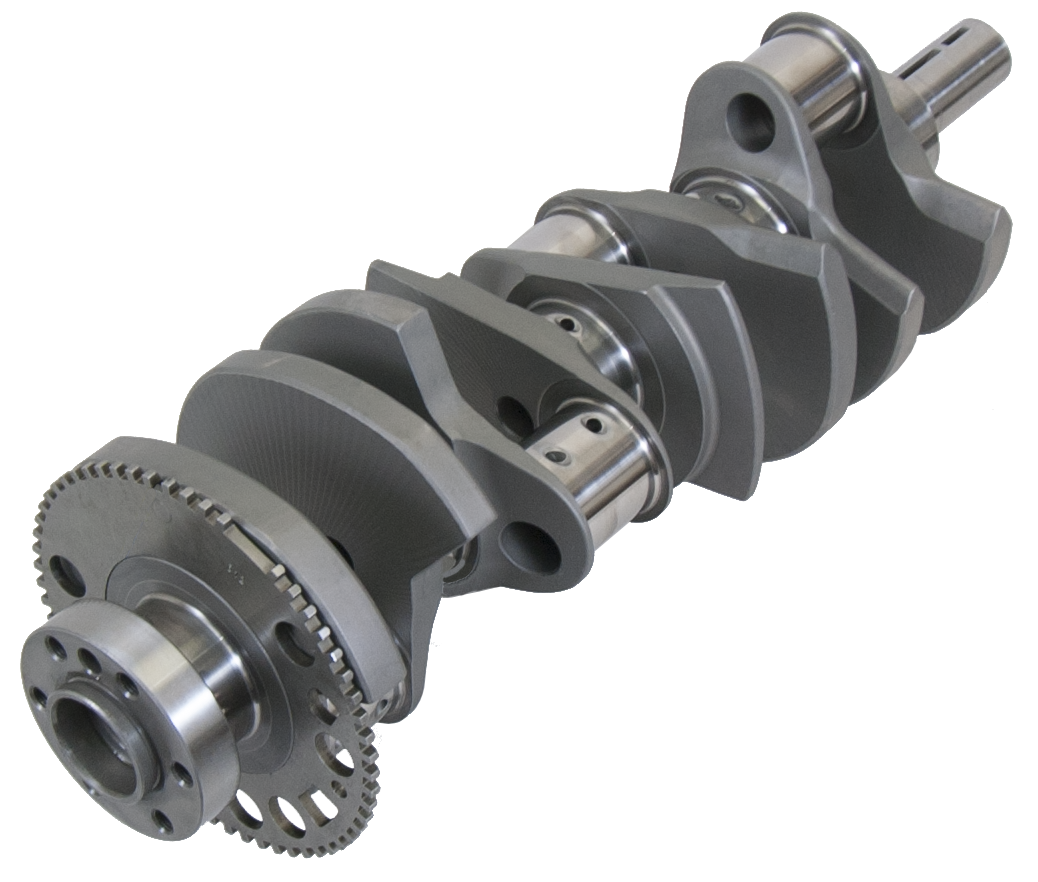

EAGLE GM LS 4340 Steel Crank 4.000 Stroke 58X Reluct 334740016100
SKU: EAG334740016100
Original price was: $2,191.94.$1,992.67Current price is: $1,992.67.
In stock
2 in stock
Add to wishlistProduct information
| Weight | 61.6 lbs |
|---|---|
| Dimensions | 32.25 × 9 × 8.75 in |
| Intended Balance | internal |
| 1 / 2 Piece Rear Main Seal | 1-Piece |
| Rod Journal Diameter | 2.100 in |
| Reluctor Wheel Included | Yes |
| Reluctor Wheel Tooth Quantity | 58.0 |
| Quantity | Each |
| Alloy | 4340 |
| Material | Steel |
| Color | Natural |
| Finish | Natural |
| Weight | 56 lbs |
| Stroke (In) | 4.000 in |
| Main Journal Diameter | 2.559 in |
| Rod Journal Width | 1.900 in |
| Journal Radius | 0.125 in |
| Minimum Rod Length | 6.125 in |
| Snout Style | Standard |
| Crankshaft Key Quantity | 1.0 |
| Flexplate / Flywheel Mounting Bolt Quantity | 6.0 |
| Material Style | Forged |
| Nitrided | Yes |
| Narrowed Bearings Required | Yes |
| UPC Code | 793348546353 |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 334740016100 |
Description
Crankshaft - 4.000 in Stroke - Internal Balance - 58X Reluctor - Billet Steel - 1-Piece Seal - GM LS-Series - Each
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
