Description

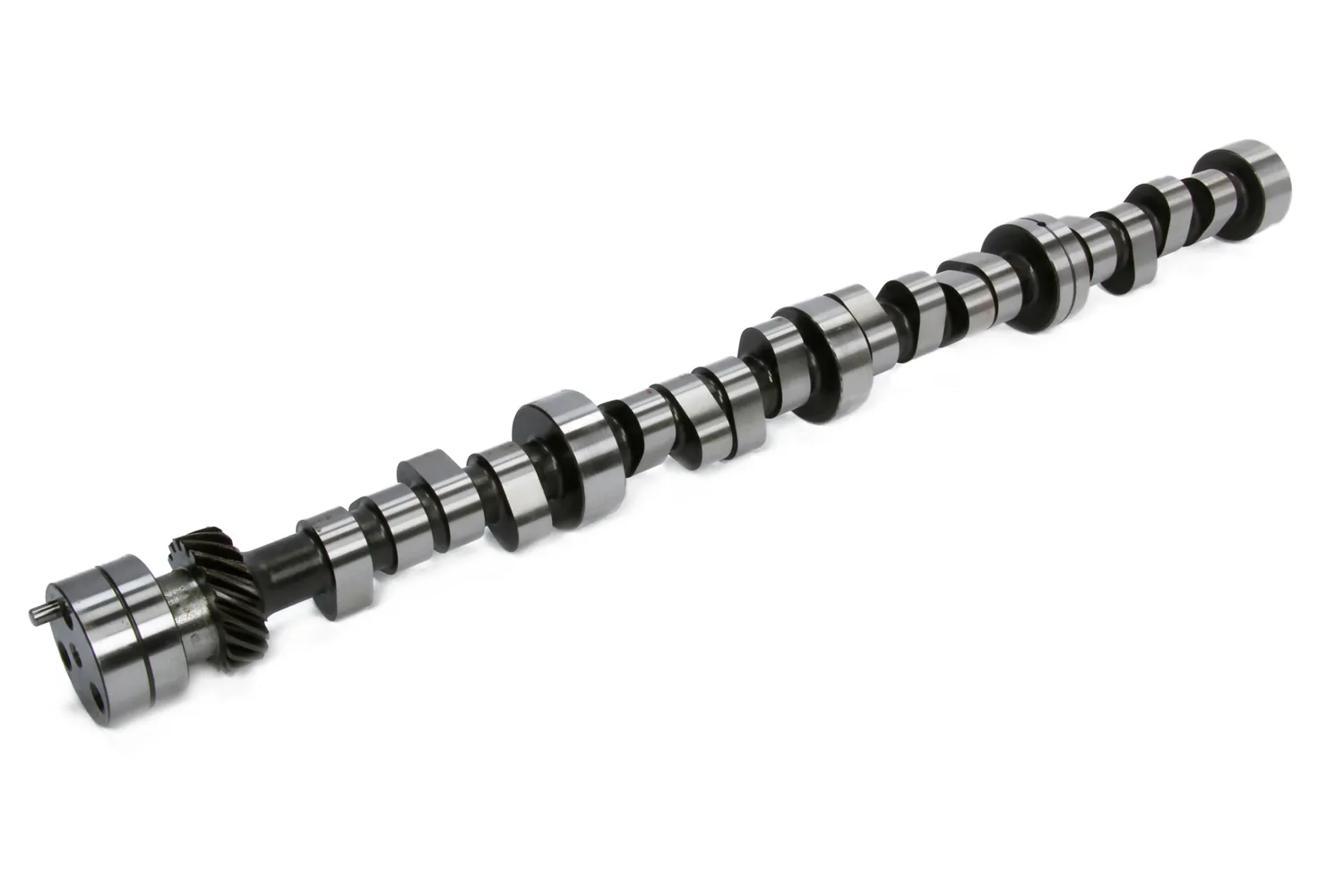

Camshaft – Xtreme Energy – Hydraulic Roller – Lift 0.569 / 0.548 in – Duration 286 / 294 – 110 LSA – 2500 / 6200 RPM – Mopar 426 Hemi – Each
Search Suggestions
Search Suggestions
Sale
COMP CAMS Xtreme Energy Hyd. Cam – 426 Hemi XR286HR-10 24-711-11
SKU: COM24-711-11
Original price was: $670.00.$608.95Current price is: $608.95.
In stock
4 in stock
Add to wishlistProduct information
| Weight | 9.79 lbs |
|---|---|
| Dimensions | 24.3 × 3.5 × 2.8 in |
| Product Line | Xtreme Energy |
| Advertised Intake Duration | 286.0 |
| Intake Duration At 0.050 In | 236.0 |
| Advertised Exhaust Duration | 294.0 |
| Exhaust Duration At 0.050 In | 242.0 |
| Intake Lift | 0.569 in |
| Exhaust Lift | 0.548 in |
| Lobe Separation Angle | 110 Degrees |
| Operating Range Rpm Lower | 2500 RPM |
| Operating Range Rpm Upper | 6200 RPM |
| Material | Billet Steel |
| Color | Natural |
| Finish | Natural |
| Quantity | Each |
| Camshaft Lifter Style | Hydraulic Roller Tappet |
| Manufacturer Grind Number | XR286HR-10 |
| Note | Hydraulic Roller – Xtreme Energy: 3.91+ gear, 2800+ stall, 9.5:1+ compression, needs headers, rough idle. |
| UPC Code | 36584312666 |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 24-711-11 |
Description
Camshaft - Xtreme Energy - Hydraulic Roller - Lift 0.569 / 0.548 in - Duration 286 / 294 - 110 LSA - 2500 / 6200 RPM - Mopar 426 Hemi - Each
