Description
Cylinder Head – Muscle Series – Assembled – 2.020 / 1.600 in Valves – 195 cc Intake – 64 cc Chamber – 1.437 in Spring – Straight Plug – Aluminum – Small Block Chevy – Pair
Straight Plug
Search Suggestions
Search Suggestions
Sale

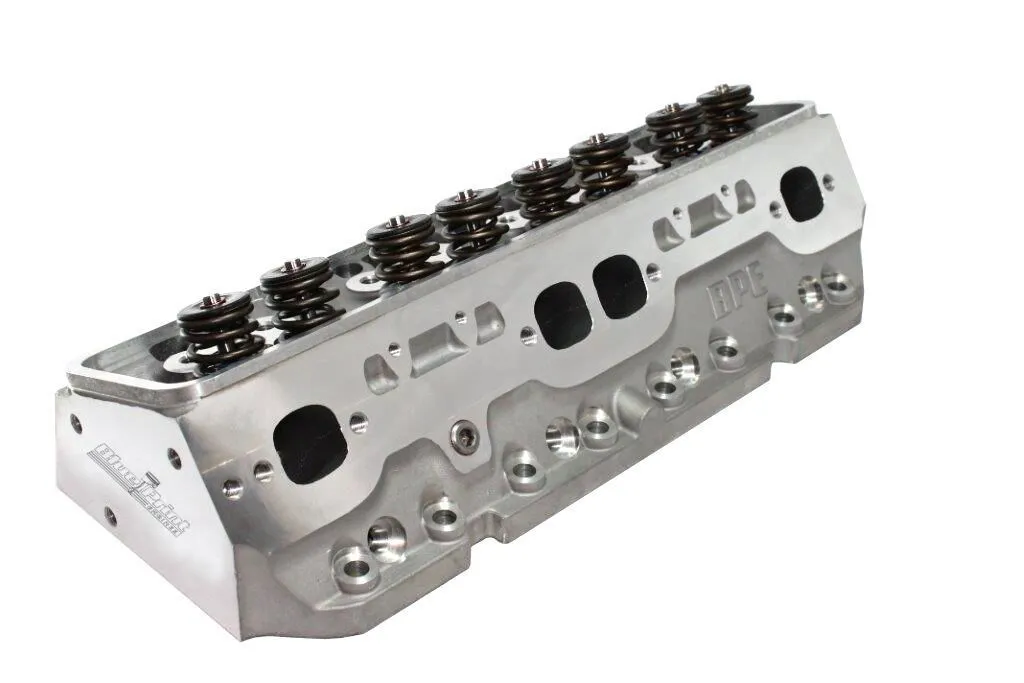

BLUEPRINT ENGINES SBC 195cc Alm Cylinder Heads 2.020/1.600 Assem. H8002K
SKU: BPEH8002K
Original price was: $1,759.00.$1,599.00Current price is: $1,599.00.
In stock
1 in stock
Add to wishlistProduct information
| Weight | 120 lbs |
|---|---|
| Dimensions | 21.5 × 14 × 9.5 in |
| Quantity | Pair |
| Product Line | Muscle Series |
| Color | Natural |
| Finish | Natural |
| Assembled/Bare | Assembled |
| Chamber Volume | 64 cc |
| Plug Angle | Straight |
| Intake Runner Volume | 195 cc |
| Exhaust Runner Volume | 75 cc |
| Intake Port Location | Stock |
| Exhaust Port Location | Raised |
| Exhaust Port Raised Distance | 0.500 in |
| Intake Valve Size | 2.020 in |
| Intake Valve Included | Yes |
| Intake Valve Material | Stainless |
| Exhaust Valve Size | 1.600 in |
| Exhaust Valve Included | Yes |
| Exhaust Valve Material | Stainless |
| Valve Spring Included | Yes |
| Maximum Lift | 0.575 in |
| Valve Spring Diameter | 1.437 in |
| Valve Spring Number | Dual |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Chromoly |
| Valve Locks Included | Yes |
| Valve Lock Angle | 7 Degree |
| Valve Seal Included | Yes |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Rocker Studs Included | Yes |
| Rocker Stud Size | 3/8-24 in |
| Pushrod Guide Plate Included | Yes |
| Guide Plate Pushrod Size | 5/16 in |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Perimeter Mount Valve Cover | Yes |
| Center Mount Valve Cover | Yes |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Ductile Iron |
| Exhaust Valve Seat Material | Ductile Iron |
| Valve Seat Finish | Machined |
| Intake Valve Angle | 23 Degree |
| Exhaust Valve Angle | 23 Degree |
| Accessory Bolt Holes | Drilled and Tapped |
| Material | Aluminum |
| UPC Code | 887753744241 |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | H8002K |
Description
Cylinder Head - Muscle Series - Assembled - 2.020 / 1.600 in Valves - 195 cc Intake - 64 cc Chamber - 1.437 in Spring - Straight Plug - Aluminum - Small Block Chevy - Pair
Straight Plug
