Description

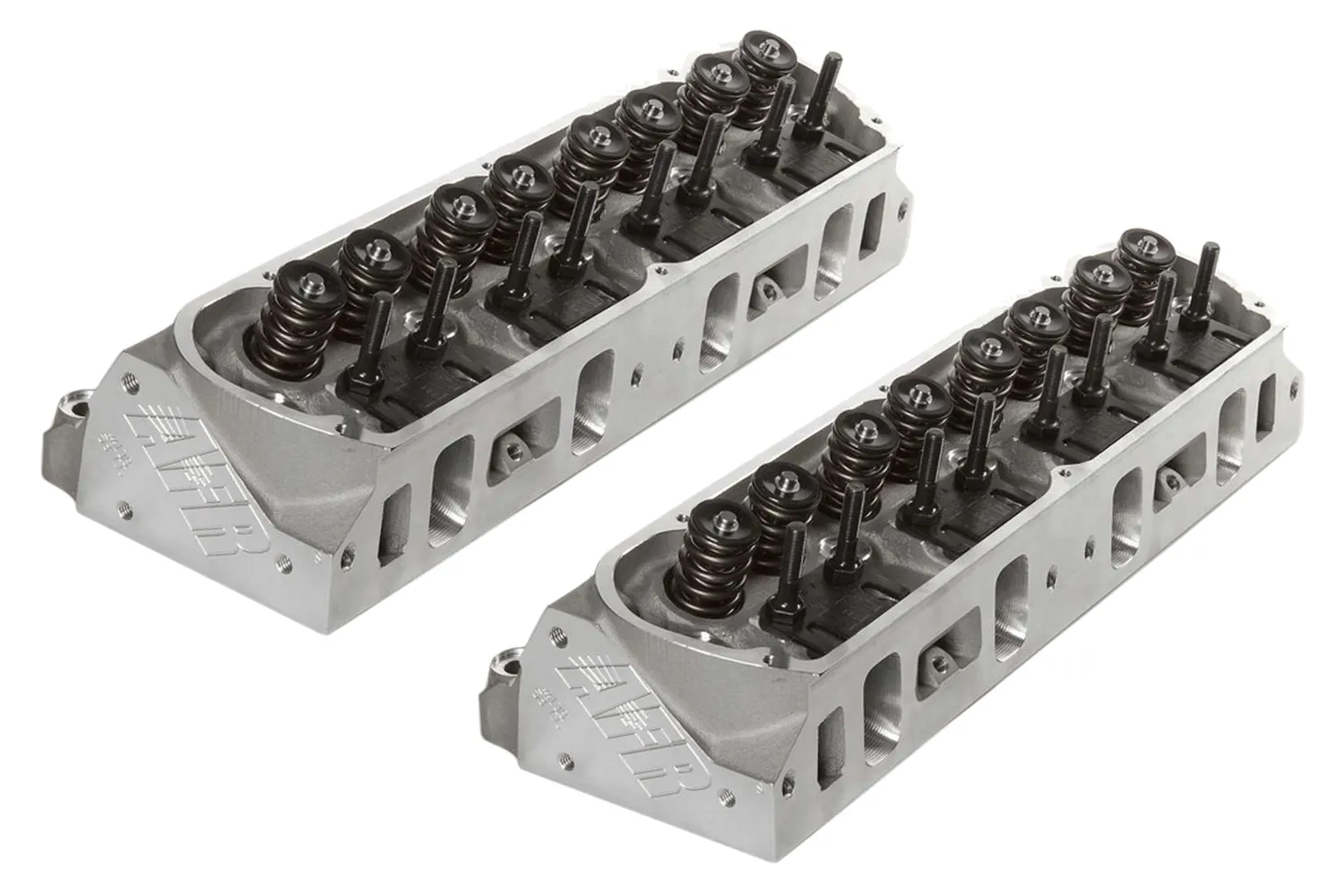

Cylinder Head – Renegade Street – Assembled – 1.900 / 1.600 in Valves – 165 cc Intake – 58 cc Chamber – 1.290 in Springs – Angle Plug – Aluminum – Small Block Ford – Pair
Search Suggestions
Search Suggestions
Sale
AIR FLOW RESEARCH SBF 165cc Alum CNC Heads Renegade Street/Strip 1399
SKU: AFR1399
Original price was: $2,339.00.$2,126.00Current price is: $2,126.00.
On backorder
Add to wishlistProduct information
| Weight | 65.53 lbs |
|---|---|
| Dimensions | 25 × 12.1 × 9 in |
| Product Line | Renegade Street |
| Assembled/Bare | Assembled |
| Chamber Volume | 58 cc |
| Plug Angle | Angle |
| Intake Runner Volume | 165 cc |
| Exhaust Runner Volume | 68 cc |
| Intake Port Shape | Rectangle |
| Intake Port Location | Stock |
| Intake Port Height | 2.060 in |
| Intake Port Width | 1.250 in |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Stock |
| Exhaust Port Height | 1.355 in |
| Exhaust Port Width | 1.360 in |
| Intake Valve Size | 1.900 in |
| Intake Valve Included | Yes |
| Intake Valve Material | Stainless |
| Intake Valve Length | 4.900 in |
| Exhaust Valve Size | 1.600 in |
| Exhaust Valve Included | Yes |
| Exhaust Valve Material | Stainless |
| Exhaust Valve Length | 4.950 in |
| Valve Spring Included | Yes |
| Intended Camshaft Style | Hydraulic Roller |
| Maximum Lift | 0.600 in |
| Maximum Rpm | 6500.0 |
| Valve Spring Diameter | 1.290 in |
| Valve Spring Number | Dual |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Chromoly |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly |
| Valve Lock Angle | 7 Degree |
| Valve Seal Included | Yes |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Rocker Studs Included | Yes |
| Rocker Stud Size | 3/8-24 in |
| Pushrod Guide Plate Included | Yes |
| Guide Plate Pushrod Size | 5/16 in |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Perimeter Mount Valve Cover | Yes |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Ductile Iron |
| Exhaust Valve Seat Material | Ductile Iron |
| Valve Seat Finish | Machined |
| Combustion Chamber Finish | CNC Machined |
| Intake Runner Finish | CNC Machined |
| Exhaust Runner Finish | CNC Machined |
| Intake Valve Angle | 20 Degree |
| Exhaust Valve Angle | 20 Degree |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Pair |
| Maximum Duration | 235 degrees |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 1399 |
Description
Cylinder Head - Renegade Street - Assembled - 1.900 / 1.600 in Valves - 165 cc Intake - 58 cc Chamber - 1.290 in Springs - Angle Plug - Aluminum - Small Block Ford - Pair
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
