Description
Cylinder Head – Eliminator Race – Assembled – 2.100 / 1.600 in Valves – 235 cc Intake – 70 cc Chamber – 1.550 in Springs – Angle Plug – Aluminum – Small Block Chevy – Pair
Search Suggestions
Search Suggestions
Sale

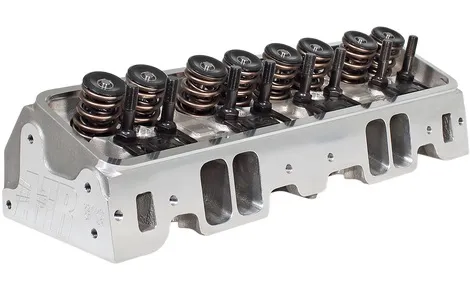

AIR FLOW RESEARCH SBC 235cc CNC Alum Heads Eliminator Race 70cc A/P 1134-TI
SKU: AFR1134-TI
Original price was: $3,838.00.$3,489.00Current price is: $3,489.00.
In stock
3 in stock
Add to wishlistProduct information
| Weight | 64 lbs |
|---|---|
| Dimensions | 24 × 12 × 9 in |
| Product Line | Eliminator Race |
| Assembled/Bare | Assembled |
| Chamber Volume | 70 cc |
| Plug Angle | Angle |
| Intake Runner Volume | 235 cc |
| Exhaust Runner Volume | 80 cc |
| Intake Port Shape | Rectangle |
| Intake Port Location | Stock |
| Intake Port Height | 2.200 in |
| Intake Port Width | 1.290 in |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Raised |
| Exhaust Port Height | 1.430 in |
| Exhaust Port Width | 1.540 in |
| Intake Valve Size | 2.100 in |
| Intake Valve Included | Yes |
| Intake Valve Material | Stainless |
| Intake Valve Length | 5.000 in |
| Exhaust Valve Size | 1.600 in |
| Exhaust Valve Included | Yes |
| Exhaust Valve Material | Stainless |
| Exhaust Valve Length | 5.030 in |
| Valve Spring Included | Yes |
| Intended Camshaft Style | Solid Roller |
| Maximum Lift | 0.800 in |
| Maximum Rpm | 8200.0 |
| Valve Spring Diameter | 1.550 in |
| Valve Spring Number | Dual |
| Valve Spring Damper | Yes |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Titanium |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly |
| Valve Lock Angle | 10 Degree |
| Valve Seal Included | Yes |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Rocker Studs Included | Yes |
| Rocker Stud Size | 7/16-20 in |
| Pushrod Guide Plate Included | Yes |
| Guide Plate Pushrod Size | 5/16 in |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Perimeter Mount Valve Cover | Yes |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Ductile Iron |
| Exhaust Valve Seat Material | Ductile Iron |
| Valve Seat Finish | Machined |
| Combustion Chamber Finish | CNC Machined |
| Intake Runner Finish | CNC Machined |
| Exhaust Runner Finish | CNC Machined |
| Intake Valve Angle | 23 Degree |
| Exhaust Valve Angle | 23 Degree |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Pair |
| Exhaust Port Raised Distance | 0.250 in |
| Spread Exhaust Port | Yes |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 1134-TI |
Description
Cylinder Head - Eliminator Race - Assembled - 2.100 / 1.600 in Valves - 235 cc Intake - 70 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Small Block Chevy - Pair
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
