Description

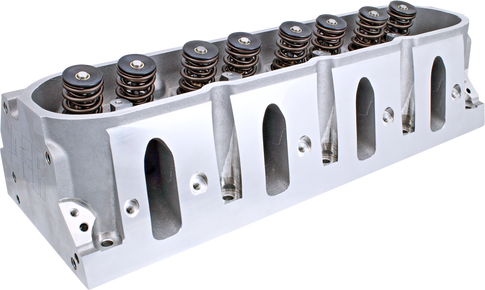

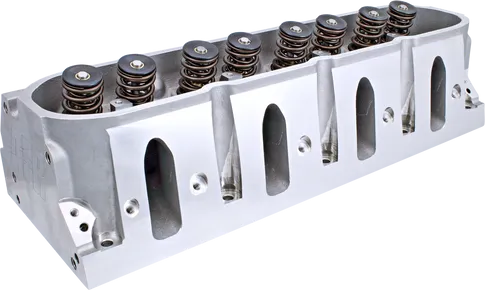

Cylinder Head – Enforcer – Assembled – 2.000 / 1.570 in Valves – 210 cc Intake – 64 cc Chamber – 1.290 in Springs – Angle Plug – Aluminum – GM LS-Series – Each
Search Suggestions
Search Suggestions
Sale
AIR FLOW RESEARCH LSX 210cc Enforcer Cyl Head 64cc As Cast Assem. 1506
SKU: AFR1506
Original price was: $785.00.$713.00Current price is: $713.00.
On backorder
Add to wishlistProduct information
| Weight | 29.7 lbs |
|---|---|
| Dimensions | 21.6 × 9.7 × 7 in |
| Product Line | LS1 Enforcer |
| Assembled/Bare | Assembled |
| Chamber Volume | 64 cc |
| Plug Angle | Angle |
| Intake Runner Volume | 210 cc |
| Exhaust Runner Volume | 82 cc |
| Intake Port Shape | Cathedral |
| Intake Port Location | Stock |
| Intake Port Height | 3.190 in |
| Intake Port Width | 1.015 in |
| Exhaust Port Shape | Round |
| Exhaust Port Location | Stock |
| Exhaust Port Height | 1.400 in |
| Exhaust Port Width | 1.660 in |
| Intake Valve Size | 2.000 in |
| Intake Valve Included | Yes |
| Intake Valve Material | Stainless |
| Intake Valve Length | 4.900 in |
| Exhaust Valve Size | 1.570 in |
| Exhaust Valve Included | Yes |
| Exhaust Valve Material | Stainless |
| Exhaust Valve Length | 4.915 in |
| Valve Spring Included | Yes |
| Intended Camshaft Style | Hydraulic Roller |
| Maximum Lift | 0.600 in |
| Maximum Rpm | 6500.0 |
| Valve Spring Diameter | 1.290 in |
| Valve Spring Number | Dual |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Titanium |
| Valve Locks Included | Yes |
| Valve Lock Material | Steel |
| Valve Lock Angle | 7 Degree |
| Valve Seal Included | Yes |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Ductile Iron |
| Exhaust Valve Seat Material | Ductile Iron |
| Valve Seat Finish | Machined |
| Combustion Chamber Finish | As Cast |
| Intake Runner Finish | As Cast |
| Exhaust Runner Finish | As Cast |
| Intake Valve Angle | 15 Degree |
| Exhaust Valve Angle | 15 Degree |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Each |
| Center Mount Valve Cover | Yes |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 1506 |
Description
Cylinder Head - Enforcer - Assembled - 2.000 / 1.570 in Valves - 210 cc Intake - 64 cc Chamber - 1.290 in Springs - Angle Plug - Aluminum - GM LS-Series - Each
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
