Description

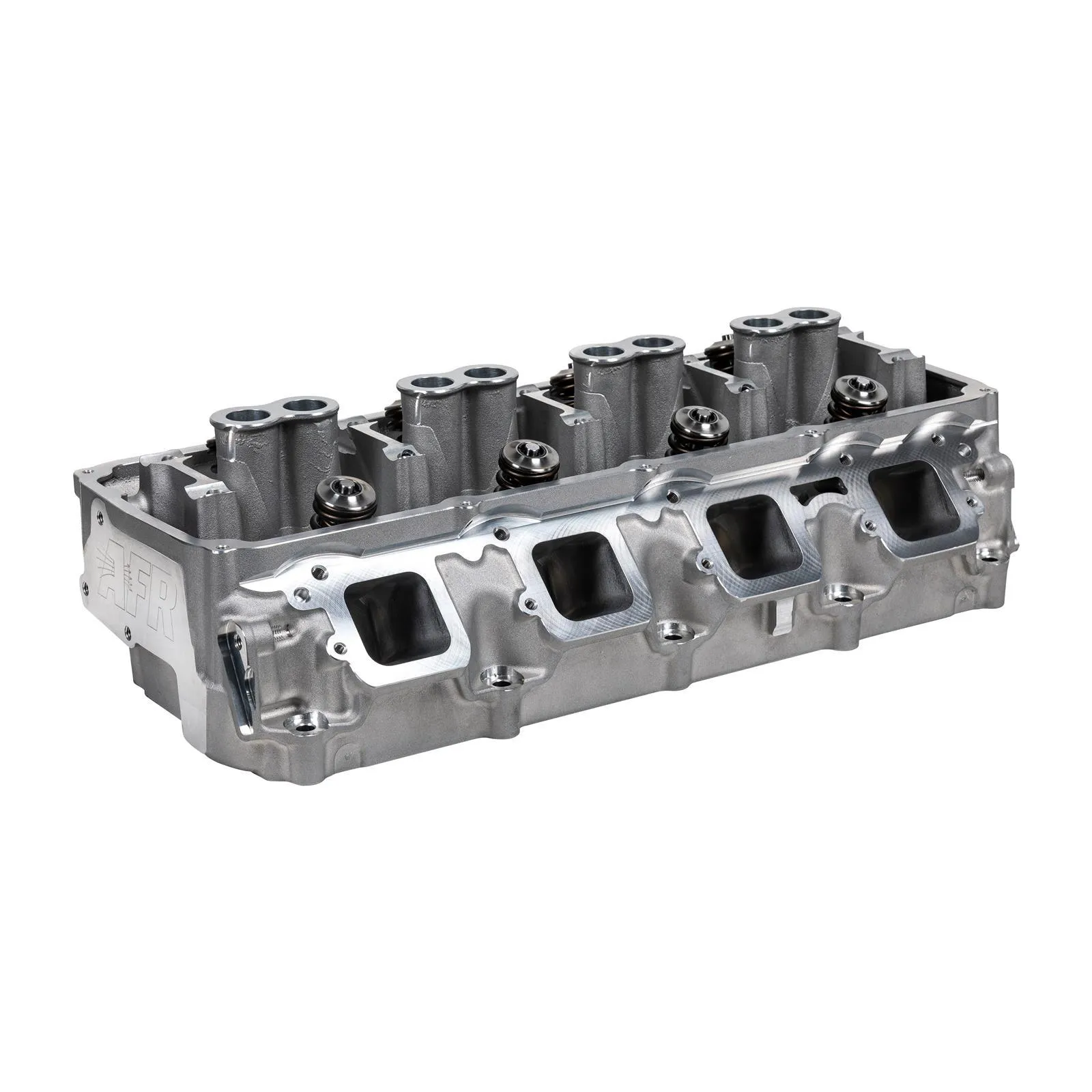

Cylinder Head – Black Hawk – Assembled – Passenger Side – 2.125 / 1.650 in Valves – 212 cc Intake – 73 cc Chamber – 1.290 in Springs – Straight Plug – Aluminum – Mopar Gen III Hemi – Each
Black Hawk Series
Search Suggestions
Search Suggestions
Sale
AIR FLOW RESEARCH Gen III Hemi 212cc RH Cyl Head 73cc CNC Assem 2522
SKU: AFR2522
Original price was: $2,004.00.$1,821.00Current price is: $1,821.00.
In stock
1 in stock
Add to wishlistProduct information
| Weight | 37.3 lbs |
|---|---|
| Dimensions | 25 × 10.5 × 7.5 in |
| Product Line | Black Hawk |
| Assembled/Bare | Assembled |
| Chamber Volume | 73 cc |
| Intake Runner Volume | 212 cc |
| Exhaust Runner Volume | 75 cc |
| Intake Port Shape | Square |
| Intake Port Location | Stock |
| Exhaust Port Shape | D |
| Exhaust Port Location | Stock |
| Intake Valve Size | 2.125 in |
| Intake Valve Included | Yes |
| Intake Valve Material | Stainless |
| Exhaust Valve Size | 1.650 in |
| Exhaust Valve Included | Yes |
| Exhaust Valve Material | Stainless |
| Valve Spring Included | Yes |
| Intended Camshaft Style | Hydraulic Roller |
| Maximum Lift | 0.600 in |
| Maximum Rpm | 6500.0 |
| Valve Spring Diameter | 1.290 in |
| Valve Spring Number | Dual |
| Valve Spring Retainers Included | Yes |
| Valve Spring Retainer Material | Titanium |
| Valve Locks Included | Yes |
| Valve Lock Material | Chromoly |
| Valve Lock Angle | 10 Degree |
| Valve Seal Included | Yes |
| Valve Seal Style | Positive Stop |
| Valve Seal Material | Viton |
| Valve Guide Included | Yes |
| Valve Guide Material | Bronze |
| Perimeter Mount Valve Cover | Yes |
| Valve Seat Included | Yes |
| Intake Valve Seat Material | Ductile Iron |
| Exhaust Valve Seat Material | Ductile Iron |
| Valve Seat Finish | Machined |
| Combustion Chamber Finish | CNC Machined |
| Intake Runner Finish | CNC Machined |
| Exhaust Runner Finish | CNC Machined |
| Intake Valve Angle | 18 Degree |
| Exhaust Valve Angle | 16.5 Degree |
| Material | Aluminum |
| Color | Natural |
| Finish | Natural |
| Quantity | Each |
| Variant | Yes |
| Driver / Passenger Side | Passenger Side |
| Variant Group | Cylinder Heads7 |
| Variant Column | Driver / Passenger Side |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 2522 |
Description
Cylinder Head - Black Hawk - Assembled - Passenger Side - 2.125 / 1.650 in Valves - 212 cc Intake - 73 cc Chamber - 1.290 in Springs - Straight Plug - Aluminum - Mopar Gen III Hemi - Each
Black Hawk Series
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
