Description
Fuel Pump – Billet Belt Drive – Belt or Hex Driven – In-Line – 10 AN Female O-Ring Inlet / Outlet – Red – Bracket / Pulley / Belt Included – Big Block Chevy – Kit
Search Suggestions
Search Suggestions
Sale

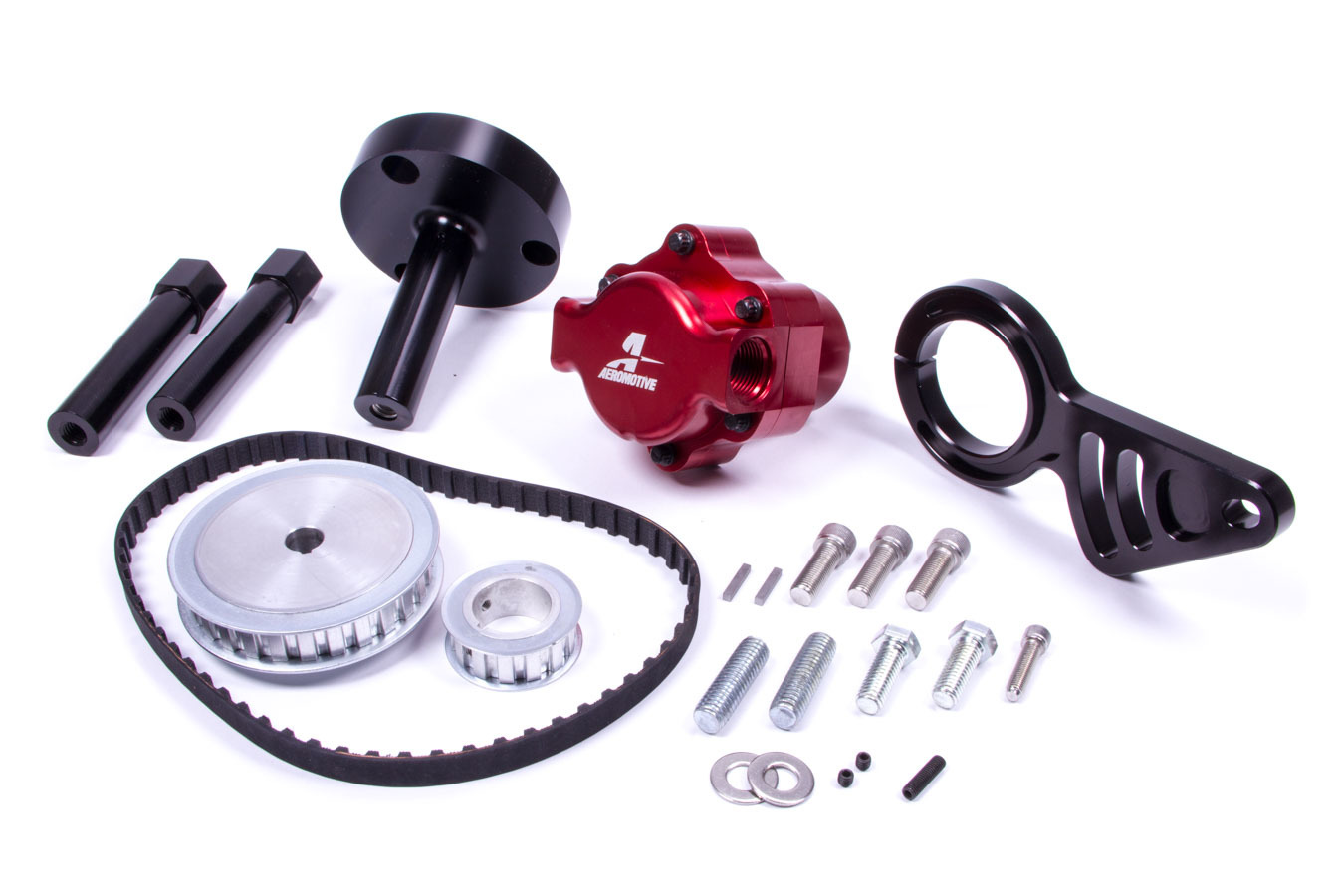

AEROMOTIVE BBC Belt Pump Kit – Lower Left 17241
SKU: AFS17241
Original price was: $1,868.00.$1,697.71Current price is: $1,697.71.
On backorder
Add to wishlistProduct information
| Weight | 6.975 lbs |
|---|---|
| Dimensions | 8.4 × 7.3 × 6.35 in |
| Material | Aluminum |
| Color | Red |
| Finish | Anodized |
| Quantity | Kit |
| Outlet Size | 10 AN |
| Outlet Style | Female |
| Hardware Included | Yes |
| Electric/Mechanical | Mechanical |
| In-Tank/Inline | Inline |
| Inlet Size | 10 AN |
| Inlet Style | Female |
| Inlet O-Ring | Yes |
| Outlet O-Ring | Yes |
| Mounting Bracket Included | Yes |
| Gasoline Compatible | Yes |
| Methanol Compatible | Yes |
| E85 Compatible | Yes |
| Belt Driven | Yes |
| Belt Style | Cog Belt |
| Belt Included | Yes |
| Drive Mandrel Included | Yes |
| Drive Mandel Length | 4.7 in |
| Drive Mandrel Mounting Style | Bolt-On |
| Drive Mandrel Flange Bolt Quantity | 3.0 |
| Drive Flange Material | Aluminum |
| Drive Flange Color | Black |
| Drive Flange Finish | Anodized |
| Pulley Included | Yes |
| Pulley 1 Style | HTD |
| Pulley 1 Grooves / Ribs | Tooth |
| Pulley 1 Diameter | 14 Tooth |
| Pulley 1 Tooth Pitch | 3/8 in |
| Pulley 1 Width | 9/16 in |
| Pulley 1 Intended Shaft Diameter | 1 in |
| Pulley 2 Style | HTD |
| Pulley 2 Grooves / Ribs | Tooth |
| Pulley 2 Diameter | 28 Tooth |
| Pulley 2 Tooth Pitch | 3/8 in |
| Pulley 2 Width | 9/16 in |
| Pulley 2 Intended Shaft Diameter | 1 in |
| Pulley Set Screws Included | Yes |
| Pulled Belt Guide Included | Yes |
| Pulley Material | Aluminum |
| Pulley Color | Natural |
| Pulley Finish | Natural |
| Maximum Pressure | 60 PSI |
| Mounting Bracket Pump End Mount Style | Clamp On |
| Mounting Bracket Engine End Mount Style | Bolt On |
| Mounting Bracket Material | Aluminum |
| Mounting Bracket Color | Black |
| Mounting Bracket Finish | Anodized |
| UPC Code | 684980001914 |
| Brand | |
| Type | |
| Condition | |
| Manufacturer Part Number (MPN) | 17241 |
Description
Fuel Pump - Billet Belt Drive - Belt or Hex Driven - In-Line - 10 AN Female O-Ring Inlet / Outlet - Red - Bracket / Pulley / Belt Included - Big Block Chevy - Kit
Features
- Wheel Front is the USA Automotive Authorized Retailer
- High-Performance Automotive Parts
- 100% Legit Auto Parts From USA
- 100% Satisfaction Guarantee
- Low Price and Vehicle Fitment Guarantee
- Inventory Monitoring Guarantee
